编号：177764
CAS号：1802086-72-1
单字母：Biotinyl-Ahx-DAEFRHDSGYEVHHQKLVFFAEDVGSNKGAIIGLMVGGVV-OH
生物素可以与亲和素或者链霉亲和素有力结合，结合强度甚至接近共价键。生物素标记的肽通常用于免疫测定，组织细胞化学和基于荧光的流式细胞术。标记的抗生物素抗体也可以用来结合生物素化多肽。生物素标记常连接在赖氨酸侧链或者N末端。通常在多肽和生物素之间使用6-氨基己酸作为纽带，纽带能够灵活结合底物，并且在有空间位阻的情况下能结合地更好。专肽生物根据需求，向客户提供具有不同位点生物素标记多肽的定制合成。
专肽生物合成用于蛋白质-蛋白质相互作用研究的生物素化肽。尽管生物素可以在 N 端或 C 端引入（通过赖氨酸残基），但我们建议使用 N 端修饰，因为它成本低、成功率高、周转时间短且易于操作。因为多肽合成是从 C 端到 N 端合成的，因此，N 端修饰是 SPPS步骤的最后一步，不需要额外的特定缩合步骤。相比之下，C 端修饰需要额外的步骤，并且通常更复杂。当然，原则上生物素可以定位在任何地方。
生物素可以通过多种不同的接头或间隔物与肽分离。尽管如此，还是建议包含一个灵活的间隔物，例如 Ahx（一个 6 碳接头），以使生物素标签更加稳定或灵活。
专肽生物在 N 端或 C 端提供生物素化：生物素-N 端、赖氨酸-生物素-肽中间和赖氨酸-生物素-C 端。
专肽生物还可以使用 Ahx 接头或长碳 (LC) 接头提供生物素化：生物素-Ahx-N 末端、Lys-Ahx-生物素-肽中间、Lys-Ahx-生物素-C-末端。
（生物素结构）
示例：
GRGDS在N端和C端标记生物素的结构展示。
1、GRGDS在N端标记生物素，不增加Ahx 接头
2、GRGDS在N端标记生物素，增加一个Ahx 接头
3、GRGDS在C端标记生物素，不增加Ahx 接头
4、GRGDS在C端标记生物素，增加一个Ahx 接头。
The flexible LC spacer increases the accessibility of the biotin moiety.
多肽Biotin-Ahx-Asp-Ala-Glu-Phe-Arg-His-Asp-Ser-Gly-Tyr-Glu-Val-His-His-Gln-Lys-Leu-Val-Phe-Phe-Ala-Glu-Asp-Val-Gly-Ser-Asn-Lys-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-COOH的合成步骤：
1、合成CTC树脂：称取2.36g CTC Resin（如初始取代度约为0.92mmol/g）和2.61mmol Fmoc-Val-OH于反应器中，加入适量DCM溶解氨基酸（需要注意，此时CTC树脂体积会增大好几倍，避免DCM溶液过少），再加入6.51mmol DIPEA（Mw：129.1,d：0.740g/ml），反应2-3小时后，可不抽滤溶液，直接加入1ml的HPLC级甲醇，封端半小时。依次用DMF洗涤2次，甲醇洗涤1次，DCM洗涤一次，甲醇洗涤一次，DCM洗涤一次，DMF洗涤2次（这里使用甲醇和DCM交替洗涤，是为了更好地去除其他溶质，有利于后续反应）。得到 Fmoc-Val-CTC Resin。结构图如下：
2、脱Fmoc：加3倍树脂体积的20%Pip/DMF溶液，鼓氮气30分钟，然后2倍树脂体积的DMF 洗涤5次。得到 H2N-Val-CTC Resin 。（此步骤脱除Fmoc基团，茚三酮检测为蓝色，Pip为哌啶）。结构图如下：
3、缩合：取6.51mmol Fmoc-Val-OH 氨基酸，加入到上述树脂里，加适当DMF溶解氨基酸，再依次加入13.03mmol DIPEA，6.19mmol HBTU。反应30分钟后，取小样洗涤，茚三酮检测为无色。用2倍树脂体积的DMF 洗涤3次树脂。（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。得到Fmoc-Val-Val-CTC Resin。氨基酸：DIPEA：HBTU：树脂=3：6：2.85：1（摩尔比）。结构图如下：
4、依次循环步骤二、步骤三，依次得到
H2N-Val-Val-CTC Resin
Fmoc-Gly-Val-Val-CTC Resin
H2N-Gly-Val-Val-CTC Resin
Fmoc-Gly-Gly-Val-Val-CTC Resin
H2N-Gly-Gly-Val-Val-CTC Resin
Fmoc-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
Fmoc-Asp(OtBu)-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
H2N-Asp(OtBu)-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin

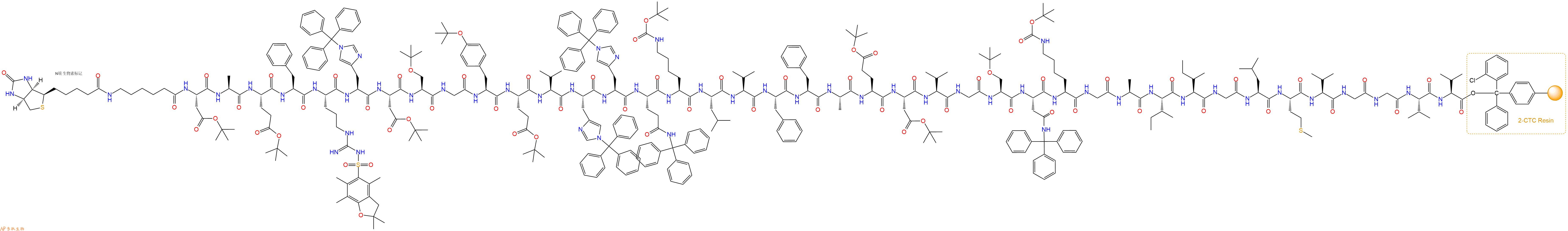

Fmoc-Ahx-Asp(OtBu)-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin
以上中间结构，均可在专肽生物多肽计算器-多肽结构计算器中，一键画出。

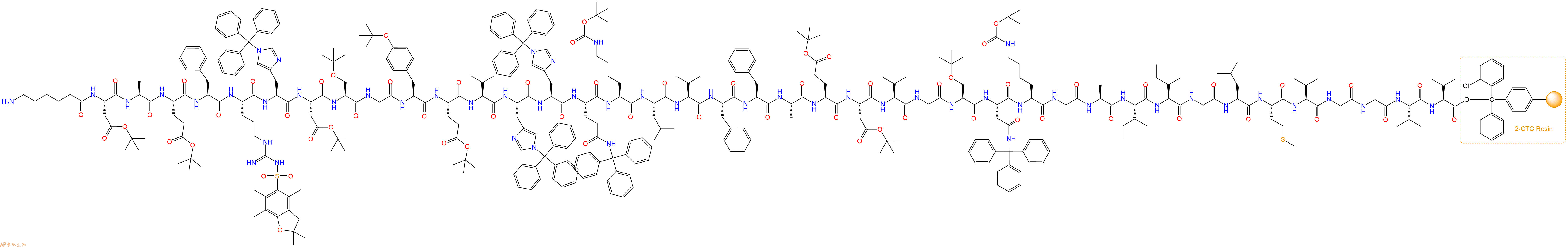

最后再经过步骤二得到 H2N-Ahx-Asp(OtBu)-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTC Resin，结构如下：
5、生物素反应连接：在上述树脂中，加入适当DMF后，再加入6.51mmol 生物素到树脂中，再加入13.03mmol DIPEA、6.19mmol HBTU，鼓氮气反应30分钟。用2倍树脂体积的DMF 洗涤3次树脂（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。 得到Biotin-Ahx-Asp(OtBu)-Ala-Glu(OtBu)-Phe-Arg(Pbf)-His(Trt)-Asp(OtBu)-Ser(tBu)-Gly-Tyr(tBu)-Glu(OtBu)-Val-His(Trt)-His(Trt)-Gln(Trt)-Lys(Boc)-Leu-Val-Phe-Phe-Ala-Glu(OtBu)-Asp(OtBu)-Val-Gly-Ser(tBu)-Asn(Trt)-Lys(Boc)-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-CTCResin。 结构如下：
6、切割：6倍树脂体积的切割液（或每1g树脂加8ml左右的切割液），摇床摇晃 2小时，过滤掉树脂，用冰无水乙醚沉淀滤液，并用冰无水乙醚洗涤沉淀物3次，最后将沉淀物放真空干燥釜中，常温干燥24小试，得到粗品Biotin-Ahx-Asp-Ala-Glu-Phe-Arg-His-Asp-Ser-Gly-Tyr-Glu-Val-His-His-Gln-Lys-Leu-Val-Phe-Phe-Ala-Glu-Asp-Val-Gly-Ser-Asn-Lys-Gly-Ala-Ile-Ile-Gly-Leu-Met-Val-Gly-Gly-Val-Val-COOH。结构图见产品结构图。
切割液选择：1）TFA：H2O=95%：5%
2）TFA：H2O：TIS=95%：2.5%：2.5%
3）三氟乙酸：茴香硫醚：1，2-乙二硫醇：苯酚：水=87.5%：5%：2.5%：2.5%：2.5%
（前两种适合没有容易氧化的氨基酸，例如Trp、Cys、Met。第三种适合几乎所有的序列。）
6、纯化冻干：使用液相色谱纯化，收集目标峰液体，进行冻干，获得蓬松的粉末状固体多肽。不过这时要取小样复测下纯度 是否目标纯度。
7、最后总结：
