Biotin-labeled RGD peptide
编号:113503
CAS号:2022956-45-0
单字母:Biotinyl-Ahx-GRGDS-OH
编号: | 113503 |
中文名称: | 生物素标记肽Biotin-C6-GRGDS |
英文名: | Biotin-C6-GRGDS |
英文同义词: | Biotin-LC-GRGDS |
CAS号: | 2022956-45-0 |
单字母: | Biotinyl-Ahx-GRGDS-OH |
三字母: | Biotinyl N端生物素标记 -Ahx6-氨基己酸(Linker) -Gly甘氨酸 -Arg精氨酸 -Gly甘氨酸 -Asp天冬氨酸 -Ser丝氨酸 -OHC端羧基 |
氨基酸个数: | 6 |
分子式: | C33H55N11O12S1 |
平均分子量: | 829.92 |
精确分子量: | 829.38 |
等电点(PI): | 8.2 |
pH=7.0时的净电荷数: | - |
平均亲水性: | 2.1 |
疏水性值: | -1.92 |
外观与性状: | 白色粉末状固体 |
消光系数: | - |
来源: | 人工化学合成,仅限科学研究使用,不得用于人体。 |
纯度: | 95%、98% |
盐体系: | 可选TFA、HAc、HCl或其它 |
生成周期: | 2-3周 |
储存条件: | 负80℃至负20℃ |
标签: | 生物素标记肽(Biotinyl) 氨基酸衍生物肽 RGD、RAD肽 |
GRGDS-amide can be coupled to carrriers by its free N-terminus.
专肽生物合成用于蛋白质-蛋白质相互作用研究的生物素化肽。尽管生物素可以在 N 端或 C 端引入(通过赖氨酸残基),但我们建议使用 N 端修饰,因为它成本低、成功率高、周转时间短且易于操作。因为多肽合成是从 C 端到 N 端合成的,因此,N 端修饰是 SPPS步骤的最后一步,不需要额外的特定缩合步骤。相比之下,C 端修饰需要额外的步骤,并且通常更复杂。当然,原则上生物素可以定位在任何地方。
生物素可以通过多种不同的接头或间隔物与肽分离。尽管如此,还是建议包含一个灵活的间隔物,例如 Ahx(一个 6 碳接头),以使生物素标签更加稳定或灵活。
专肽生物在 N 端或 C 端提供生物素化:生物素-N 端、赖氨酸-生物素-肽中间和赖氨酸-生物素-C 端。
专肽生物还可以使用 Ahx 接头或长碳 (LC) 接头提供生物素化:生物素-Ahx-N 末端、Lys-Ahx-生物素-肽中间、Lys-Ahx-生物素-C-末端。
(生物素结构)
示例:
GRGDS在N端和C端标记生物素的结构展示。
1、GRGDS在N端标记生物素,不增加Ahx 接头
2、GRGDS在N端标记生物素,增加一个Ahx 接头
3、GRGDS在C端标记生物素,不增加Ahx 接头
4、GRGDS在C端标记生物素,增加一个Ahx 接头。
RGD肽-说明
RGD肽是指含有由Arg-Gly-Asp三个氨基酸组成的序列多肽,有直线肽和环肽之分。它们是许多细胞外基质蛋白(如VN、FN、FGN、胶原等)等最小识别短肽序列。
研究发现,RGD序列肽具有广泛的生物活性,可用于心血管疾病、骨质疏松和炎症等疾病的治疗,还可以预防和治疗由细胞粘附异常而导致的肿瘤,尤其是发展性肿瘤的转移;另一方面,RGD 序列肽又可作为兴奋剂,促进损伤的器官与组织的再生、伤口的愈合等等,RGD作为某些整合素的受体,其选择性部分依赖于RGD的构象以及RGD周围的氨基酸残基。
为此,近几年,许多科技工作者合成了一系列RGD三肽、四肽、五肽等,还合成了RGD环肽、双线肽、RGD模拟肽等等。为了满足客户对各种RGD序列肽的需求,专肽生物提供最广泛的RGD序列肽库,以满足科研工作者对RGD肽的需求。
专肽生物提供各种RGD肽的现货,缩短科研工作者的项目时间,例如c(RGDfK)、c(RGDfC)、c(RADyK)、c(RGDyK)、c(RADfC)、环状多肽c(RGDfK)-巯基乙酸、c(RGDfK)-PEG2-巯基乙酸、Mpa-Ahx-c(RGDfK)、环状多肽c(RGDfK)-半胱氨酸、DOTA-c(RGDfK)、NOTA-c(RGDfK)、NOTA-c(RGDyK)、DOTA-c(RGDyK)、E[c(RGDfK)]2、E[c(RGDyK)]2、DDDDD-c(RGDfK)等等,具体可咨询销售人员。
DOI | 名称 | |
---|---|---|
10.1242/jcs.115.13.2669 | Role of the beta1-integrin cytoplasmic tail in mediating invasin-promoted internalization of Yersinia | 下载 |
10.1002/jbm.a.10461 | Adhesion and migration of marrow-derived osteoblasts on injectable in situ crosslinkable poly(propylene fumarate-co-ethylene glycol)-based hydrogels with a covalently linked RGDS peptide | 下载 |
10.1091/mbc.e03-09-0700 | The integrin beta1 subunit transmembrane domain regulates phosphatidylinositol 3-kinase-dependent tyrosine phosphorylation of Crk-associated substrate | 下载 |
10.1021/ac049810+ | Development of a whole-cell-based biosensor for detecting histamine as a model toxin | 下载 |
10.1016/j.biomaterials.2004.09.050 | Osteogenic differentiation of rat bone marrow stromal cells cultured on Arg-Gly-Asp modified hydrogels without dexamethasone and beta-glycerol phosphate | 下载 |
10.1182/blood-2004-09-3585 | Type 3 repeat/C-terminal domain of thrombospondin-1 triggers caspase-independent cell death through CD47/alphavbeta3 in promyelocytic leukemia NB4 cells | 下载 |
10.1021/la049298n | Fabrication of gradient hydrogels using a microfluidics/photopolymerization process | 下载 |
10.1016/j.biomaterials.2005.05.060 | RGD-grafted thermoreversible polymers to facilitate attachment of BMP-2 responsive C2C12 cells | 下载 |
10.1016/j.biomaterials.2007.01.021 | Bioactive hydrogel scaffolds for controllable vascular differentiation of human embryonic stem cells | 下载 |
10.1111/j.1464-410X.2007.07193.x | Bioluminescence imaging to monitor bladder cancer cell adhesion in vivo: a new approach to optimize a syngeneic, orthotopic, murine bladder cancer model | 下载 |
10.1007/s10856-007-3299-8 | Biofunctionalized poly(ethylene glycol)-block-poly(epsilon-caprolactone) nanofibers for tissue engineering | 下载 |
10.1016/j.biomaterials.2007.11.047 | Influence of the degree of methacrylation on hyaluronic acid hydrogels properties | 下载 |
10.1002/bit.21928 | Control of protein adsorption on functionalized electrospun fibers | 下载 |
10.1007/s11095-008-9673-5 | Multifunctional polymeric micelles for enhanced intracellular delivery of doxorubicin to metastatic cancer cells | 下载 |
10.1089/ten.tea.2008.0105 | Engineering the bone-ligament interface using polyethylene glycol diacrylate incorporated with hydroxyapatite | 下载 |
10.1074/jbc.M805934200 | beta1 integrin cytoplasmic domain residues selectively modulate fibronectin matrix assembly and cell spreading through talin and Akt-1 | 下载 |
10.1002/jbm.a.32478 | Bio-functionalized star PEG-coated PVDF surfaces for cytocompatibility-improved implant components | 下载 |
10.1016/j.biomaterials.2009.06.011 | Nanostructured hybrid hydrogels prepared by a combination of atom transfer radical polymerization and free radical polymerization | 下载 |
10.1002/adfm.200901311 | Rapid generation of biologically relevant hydrogels containing long-range chemical gradients | 下载 |
10.4049/jimmunol.0900775 | Cutting Edge: mechanical forces acting on T cells immobilized via the TCR complex can trigger TCR signaling | 下载 |
10.1007/s10856-010-4112-7 | Functionalization of electrospun fibers of poly(epsilon-caprolactone) with star shaped NCO-poly(ethylene glycol)-stat-poly(propylene glycol) for neuronal cell guidance | 下载 |
10.1016/j.nano.2012.02.012 | Effects of nanoparticle surface-coupled peptides, functional endgroups, and charge on intracellular distribution and functionality of human primary reticuloendothelial cells | 下载 |
10.1016/j.biomaterials.2012.02.050 | Inducing healing-like human primary macrophage phenotypes by 3D hydrogel coated nanofibres | 下载 |
10.1016/j.carbpol.2012.07.020 | In vitro evaluation of an RGD-functionalized chitosan derivative for enhanced cell adhesion | 下载 |
10.1016/j.ijpharm.2012.09.053 | Preparation and evaluation of nanoparticles for directed tissue engineering | 下载 |
10.1039/c3ib40194d | Interactions between mesenchymal stem cells, adipocytes, and osteoblasts in a 3D tri-culture model of hyperglycemic conditions in the bone marrow microenvironment | 下载 |
10.1016/j.biomaterials.2013.12.078 | Corneal stromal bioequivalents secreted on patterned silk substrates | 下载 |
10.1021/acs.biomac.5b00694 | Cell-Mediated Dexamethasone Release from Semi-IPNs Stimulates Osteogenic Differentiation of Encapsulated Mesenchymal Stem Cells | 下载 |
10.1080/19336918.2016.1221568 | Cell adhesion to anosmin via α5β1, α4β1, and α9β1 integrins | 下载 |
10.1126/science.3726541 | A synthetic peptide from fibronectin inhibits experimental metastasis of murine melanoma cells | 下载 |
10.1084/jem.162.5.1715 | Fibronectin tetrapeptide is target for syphilis spirochete cytadherence | 下载 |
10.1007/BF02476392 | Theory of biological similarities, nondimensional parameters and invariant numbers | 下载 |
10.1099/0022-1317-74-8-1485 | Involvement of cellular adhesion sequences in the attachment of adenovirus to the HeLa cell surface | 下载 |
多肽Biotin-Ahx-Gly-Arg-Gly-Asp-Ser-COOH的合成步骤:
1、合成CTC树脂:称取0.92g CTC Resin(如初始取代度约为0.72mmol/g)和0.79mmol Fmoc-Ser(tBu)-OH于反应器中,加入适量DCM溶解氨基酸(需要注意,此时CTC树脂体积会增大好几倍,避免DCM溶液过少),再加入1.99mmol DIPEA(Mw:129.1,d:0.740g/ml),反应2-3小时后,可不抽滤溶液,直接加入1ml的HPLC级甲醇,封端半小时。依次用DMF洗涤2次,甲醇洗涤1次,DCM洗涤一次,甲醇洗涤一次,DCM洗涤一次,DMF洗涤2次(这里使用甲醇和DCM交替洗涤,是为了更好地去除其他溶质,有利于后续反应)。得到 Fmoc-Ser(tBu)-CTC Resin。结构图如下:
2、脱Fmoc:加3倍树脂体积的20%Pip/DMF溶液,鼓氮气30分钟,然后2倍树脂体积的DMF 洗涤5次。得到 H2N-Ser(tBu)-CTC Resin 。(此步骤脱除Fmoc基团,茚三酮检测为蓝色,Pip为哌啶)。结构图如下:
3、缩合:取1.99mmol Fmoc-Asp(OtBu)-OH 氨基酸,加入到上述树脂里,加适当DMF溶解氨基酸,再依次加入3.97mmol DIPEA,1.89mmol HBTU。反应30分钟后,取小样洗涤,茚三酮检测为无色。用2倍树脂体积的DMF 洗涤3次树脂。(洗涤树脂,去掉残留溶剂,为下一步反应做准备)。得到Fmoc-Asp(OtBu)-Ser(tBu)-CTC Resin。氨基酸:DIPEA:HBTU:树脂=3:6:2.85:1(摩尔比)。结构图如下:
4、依次循环步骤二、步骤三,依次得到
H2N-Asp(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
H2N-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Gly-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
H2N-Gly-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Ahx-Gly-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin
以上中间结构,均可在专肽生物多肽计算器-多肽结构计算器中,一键画出。

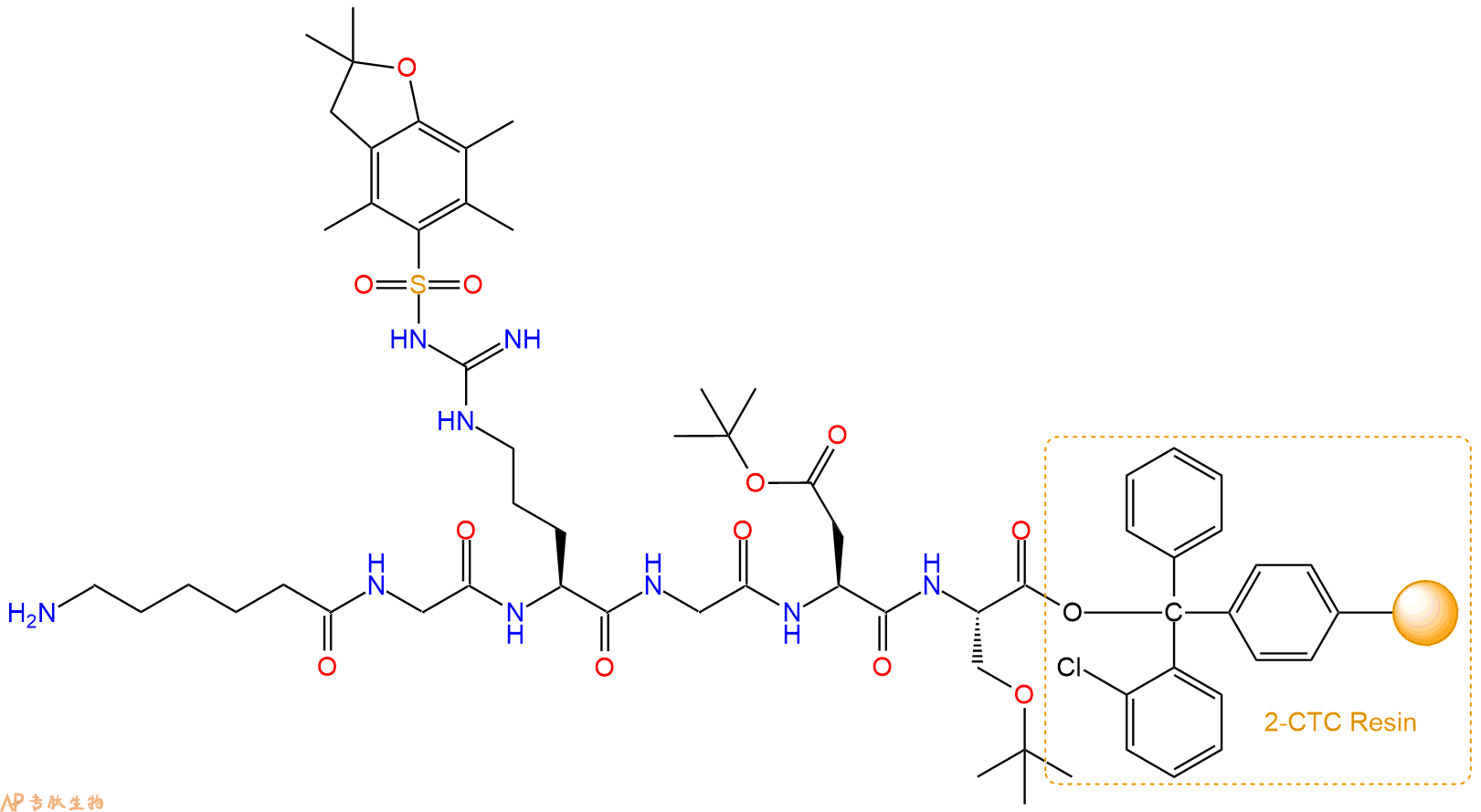

最后再经过步骤二得到 H2N-Ahx-Gly-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTC Resin,结构如下:

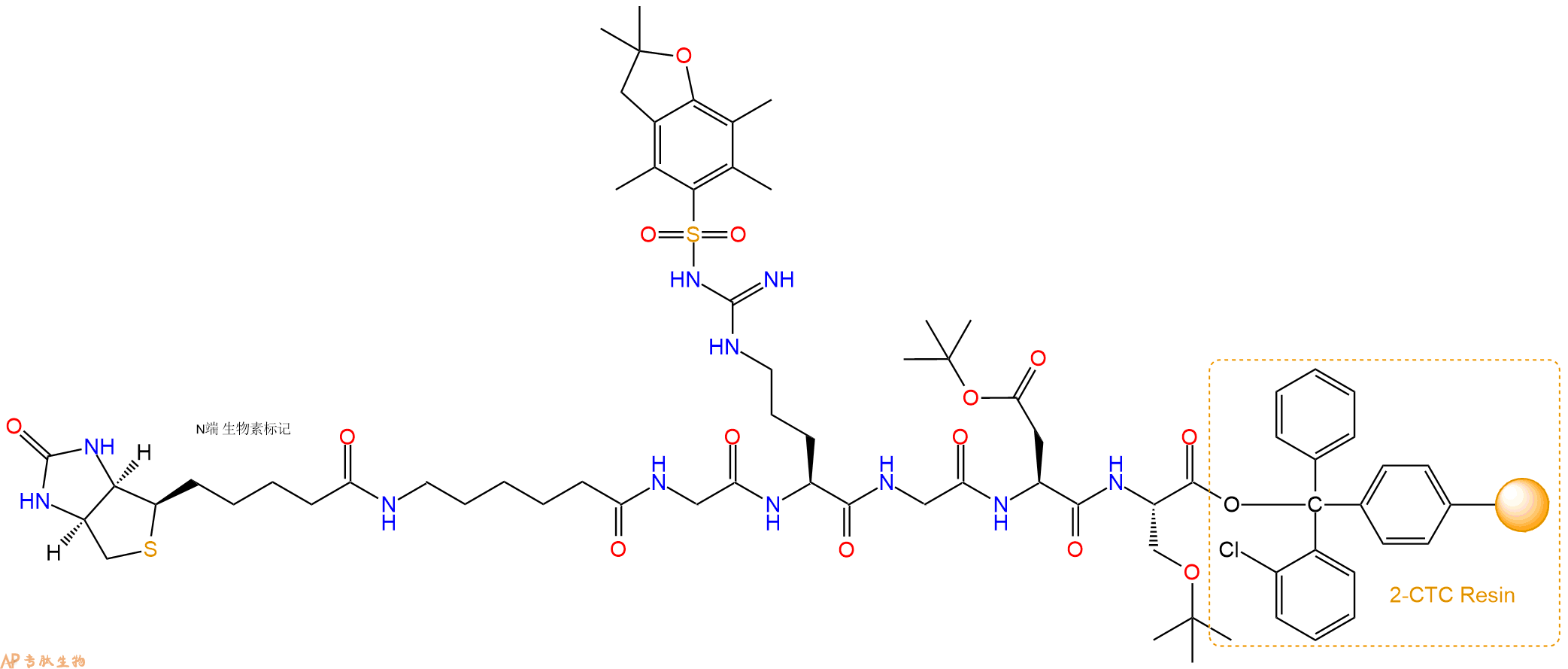

5、生物素反应连接:在上述树脂中,加入适当DMF后,再加入1.99mmol 生物素到树脂中,再加入3.97mmol DIPEA、1.89mmol HBTU,鼓氮气反应30分钟。用2倍树脂体积的DMF 洗涤3次树脂(洗涤树脂,去掉残留溶剂,为下一步反应做准备)。 得到Biotin-Ahx-Gly-Arg(Pbf)-Gly-Asp(OtBu)-Ser(tBu)-CTCResin。 结构如下:
6、切割:6倍树脂体积的切割液(或每1g树脂加8ml左右的切割液),摇床摇晃 2小时,过滤掉树脂,用冰无水乙醚沉淀滤液,并用冰无水乙醚洗涤沉淀物3次,最后将沉淀物放真空干燥釜中,常温干燥24小试,得到粗品Biotin-Ahx-Gly-Arg-Gly-Asp-Ser-COOH。结构图见产品结构图。
切割液选择:1)TFA:H2O=95%:5%
2)TFA:H2O:TIS=95%:2.5%:2.5%
3)三氟乙酸:茴香硫醚:1,2-乙二硫醇:苯酚:水=87.5%:5%:2.5%:2.5%:2.5%
(前两种适合没有容易氧化的氨基酸,例如Trp、Cys、Met。第三种适合几乎所有的序列。)
6、纯化冻干:使用液相色谱纯化,收集目标峰液体,进行冻干,获得蓬松的粉末状固体多肽。不过这时要取小样复测下纯度 是否目标纯度。
7、最后总结:
