编号：412323
CAS号：
单字母：3Mal-SYSMHFRWGKPVGKKRRPVKVYP-OH
马来酰亚胺基修饰-说明
马来酰亚胺基修饰在多肽的设计中，经常用到。通常在多肽的一端修饰马来酰亚胺基，然后通过马来酰亚胺基和材料上的巯基结合，从而将多肽固定到材料上。专肽生物可以定制合成多肽的马来酰亚胺基修饰。
通常，马来酰亚胺基分为2种，
一种是3-Mal （3-马来酰亚胺基丙酸），例如下图
另一种是6-Mal（6-马来酰亚胺基己酸）。例如下图
多肽3Mal-Ser-Tyr-Ser-Met-His-Phe-Arg-Trp-Gly-Lys-Pro-Val-Gly-Lys-Lys-Arg-Arg-Pro-Val-Lys-Val-Tyr-Pro-COOH的合成步骤：
1、合成CTC树脂：称取1.72g CTC Resin（如初始取代度约为0.37mmol/g）和0.76mmol Fmoc-Pro-OH于反应器中，加入适量DCM溶解氨基酸（需要注意，此时CTC树脂体积会增大好几倍，避免DCM溶液过少），再加入1.91mmol DIPEA（Mw：129.1,d：0.740g/ml），反应2-3小时后，可不抽滤溶液，直接加入1ml的HPLC级甲醇，封端半小时。依次用DMF洗涤2次，甲醇洗涤1次，DCM洗涤一次，甲醇洗涤一次，DCM洗涤一次，DMF洗涤2次（这里使用甲醇和DCM交替洗涤，是为了更好地去除其他溶质，有利于后续反应）。得到 Fmoc-Pro-CTC Resin。结构图如下：
2、脱Fmoc：加3倍树脂体积的20%Pip/DMF溶液，鼓氮气30分钟，然后2倍树脂体积的DMF 洗涤5次。得到 H2N-Pro-CTC Resin 。（此步骤脱除Fmoc基团，茚三酮检测为蓝色，Pip为哌啶）。结构图如下：
3、缩合：取1.91mmol Fmoc-Tyr(tBu)-OH 氨基酸，加入到上述树脂里，加适当DMF溶解氨基酸，再依次加入3.82mmol DIPEA，1.81mmol HBTU。反应30分钟后，取小样洗涤，茚三酮检测为无色。用2倍树脂体积的DMF 洗涤3次树脂。（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。得到Fmoc-Tyr(tBu)-Pro-CTC Resin。氨基酸：DIPEA：HBTU：树脂=3：6：2.85：1（摩尔比）。结构图如下：
4、依次循环步骤二、步骤三，依次得到
H2N-Tyr(tBu)-Pro-CTC Resin
Fmoc-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Tyr(tBu)-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
H2N-Tyr(tBu)-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
Fmoc-Ser(tBu)-Tyr(tBu)-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin
以上中间结构，均可在专肽生物多肽计算器-多肽结构计算器中，一键画出。
最后再经过步骤二得到 H2N-Ser(tBu)-Tyr(tBu)-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTC Resin，结构如下：

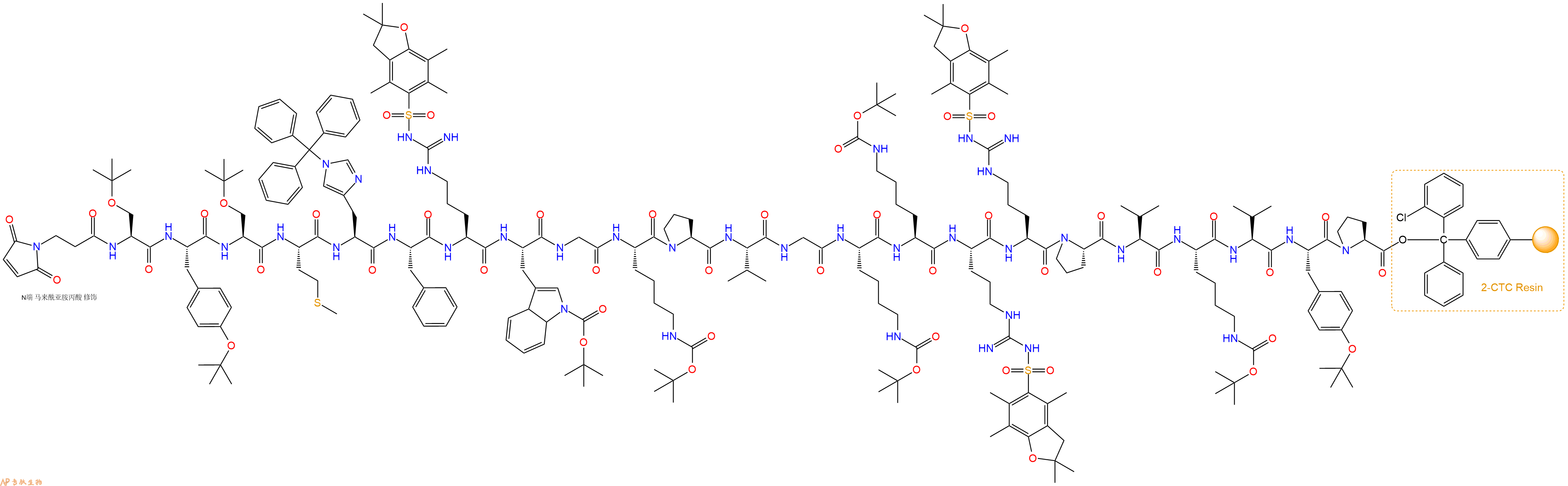

5、马来酰亚胺丙酸反应连接：在上述树脂中，加入适当DMF后，再加入1.91mmol 马来酰亚胺丙酸到树脂中，再加入3.82mmol DIPEA、1.81mmol HBTU，鼓氮气反应30分钟。用2倍树脂体积的DMF 洗涤3次树脂（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。 得到3Mal-Ser(tBu)-Tyr(tBu)-Ser(tBu)-Met-His(Trt)-Phe-Arg(Pbf)-Trp(Boc)-Gly-Lys(Boc)-Pro-Val-Gly-Lys(Boc)-Lys(Boc)-Arg(Pbf)-Arg(Pbf)-Pro-Val-Lys(Boc)-Val-Tyr(tBu)-Pro-CTCResin。 结构如下：
6、切割：6倍树脂体积的切割液（或每1g树脂加8ml左右的切割液），摇床摇晃 2小时，过滤掉树脂，用冰无水乙醚沉淀滤液，并用冰无水乙醚洗涤沉淀物3次，最后将沉淀物放真空干燥釜中，常温干燥24小试，得到粗品3Mal-Ser-Tyr-Ser-Met-His-Phe-Arg-Trp-Gly-Lys-Pro-Val-Gly-Lys-Lys-Arg-Arg-Pro-Val-Lys-Val-Tyr-Pro-COOH。结构图见产品结构图。
切割液选择：1）TFA：H2O=95%：5%
2）TFA：H2O：TIS=95%：2.5%：2.5%
3）三氟乙酸：茴香硫醚：1，2-乙二硫醇：苯酚：水=87.5%：5%：2.5%：2.5%：2.5%
（前两种适合没有容易氧化的氨基酸，例如Trp、Cys、Met。第三种适合几乎所有的序列。）
6、纯化冻干：使用液相色谱纯化，收集目标峰液体，进行冻干，获得蓬松的粉末状固体多肽。不过这时要取小样复测下纯度 是否目标纯度。
7、最后总结：
